Specification:

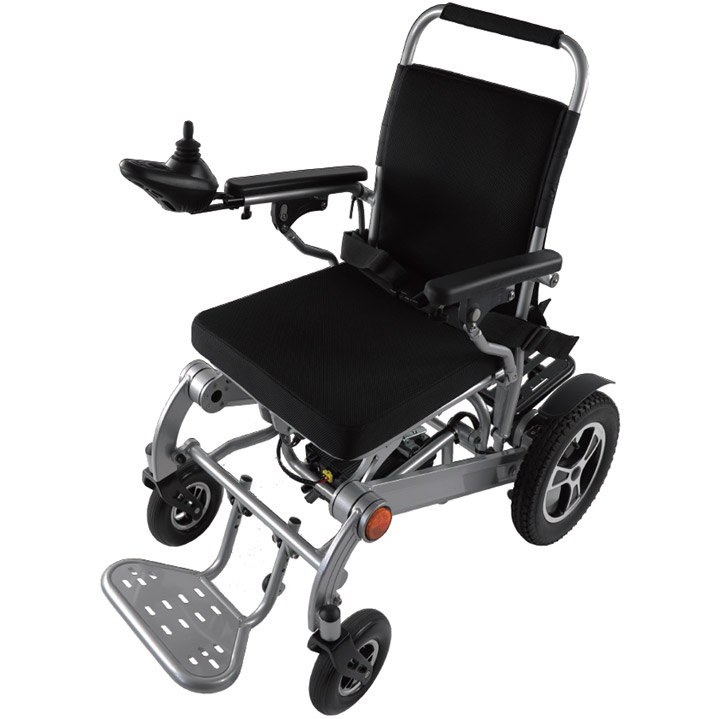

Model Name: KLW-H6F
Overall length: 1080mm
Overall width: 630mm
Overall height : 960mm

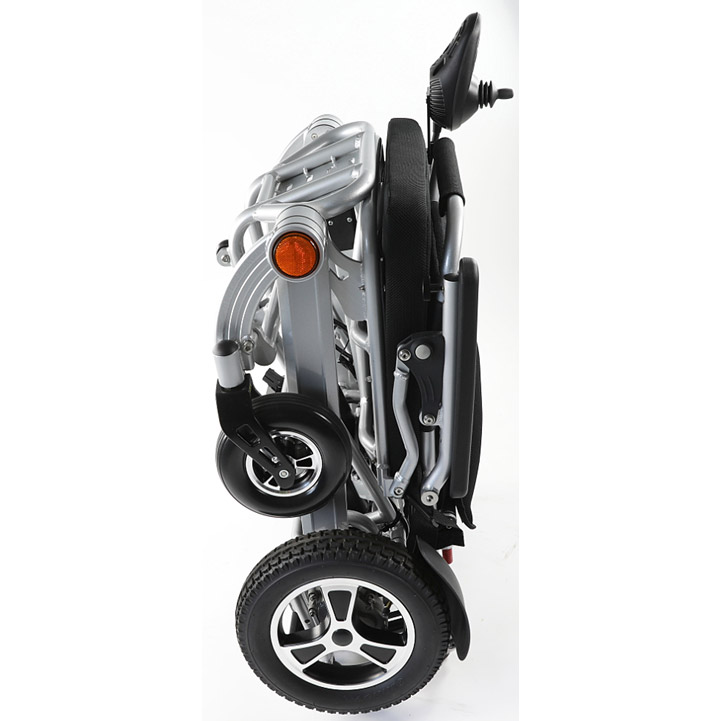

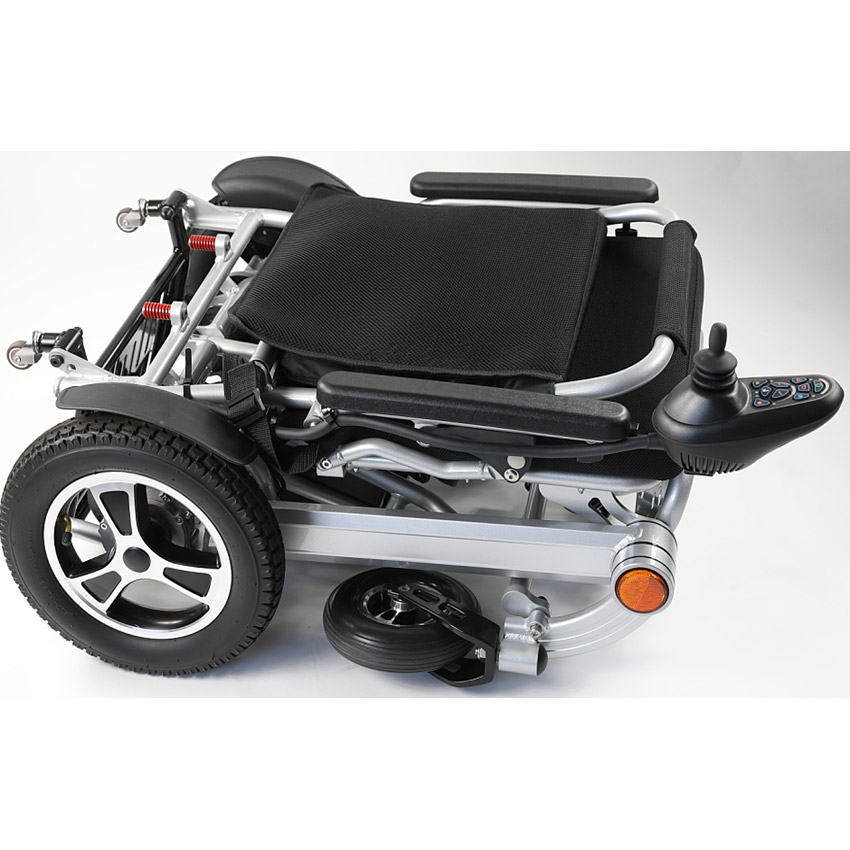

Folded length: 830mm
Folded width: 600mm
Folded height: 750mm
Total gross weight: 96kg
Obstacle crossing ability: 42mm
Dynamic stability downhill: 9°
Dynamic stability uphill: 9°
Lateral dynamic stability: 15°
Longitudinal dynamic stability: 15°
Seat plane angle: 0°~ 28±2°
Seat depth: 520mm
Seat width: 450mm
Seat height: 540mm
Reclining (electrical control) : 90°~128°（±2°）
Height of backrest: 560mm
Distance from footrest to seat: 450mm
Angle of footrest to seat: 6°
Distance of handrail to seat: 260mm
Minimum turning radius: 850mm
Max speed: 6km/h
Reverse speed: 2.5km/h
Braking distance: 900mm
Battery capacity: 24V18Ah
Max loading: 150kg
Controller: HZ-XF50A
Motor: 24V 150W
Wheel: Front PU 8” , Rear 12.5” Pneumatic tire
Max range: 18km±2km
Charging time: 7-8h
Charger: DC 24V-5.0A
Max climbing slope: 15°
Frame material: aluminum
Operation: remote control
