Specification

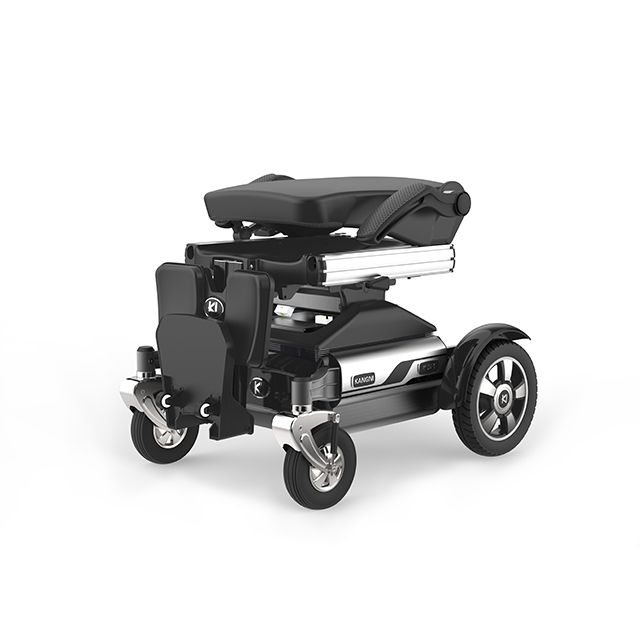

Model Name: KLW-KS1

Overall length: 1034-1157mm

Overall width: 675±10mm

Overall height: 1058-1141mm

Seat height: 487-570mm

Seat width: 400-500mm

Seat depth: 400-500mm

Rear drive wheelbase: 526-642mm

Front drive wheelbase: 606-754mm

Weight: 55-89kg

Max. load: 100kg

Max.range: 15/25km

Max. safe slope: 6゜/9゜

Battery size: 15.6/28.6Ah

Charger: 4A

Universal wheel: 5/8 inch

Driving wheel: 8/12 inch
