Product Parameters

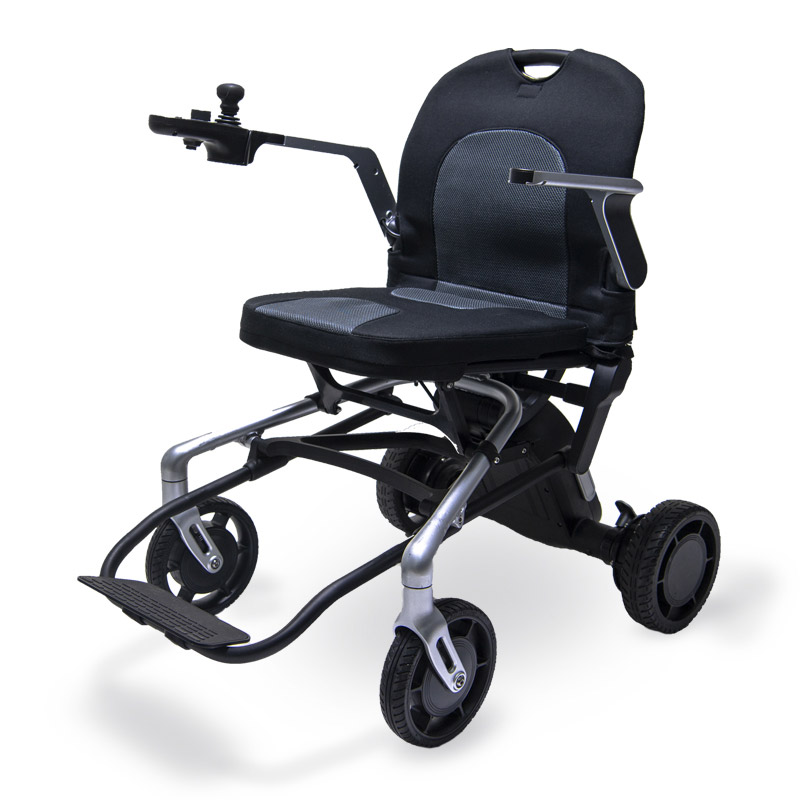

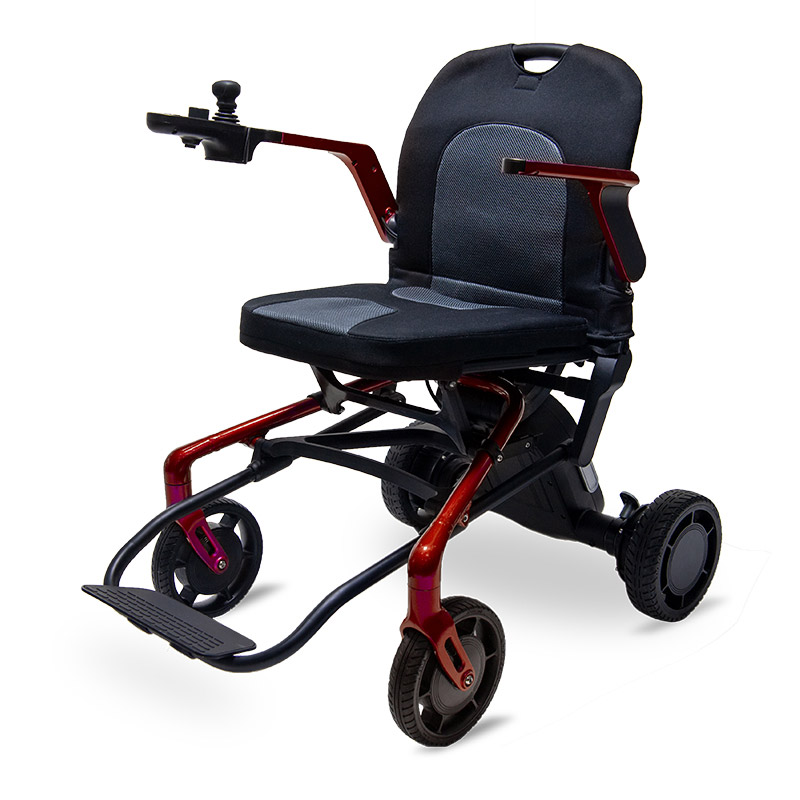

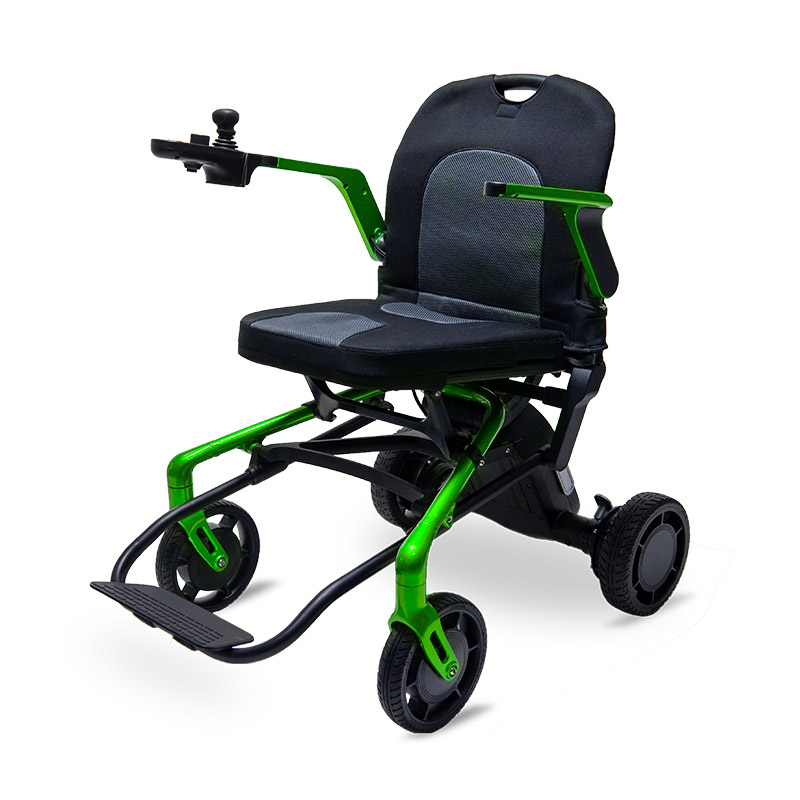

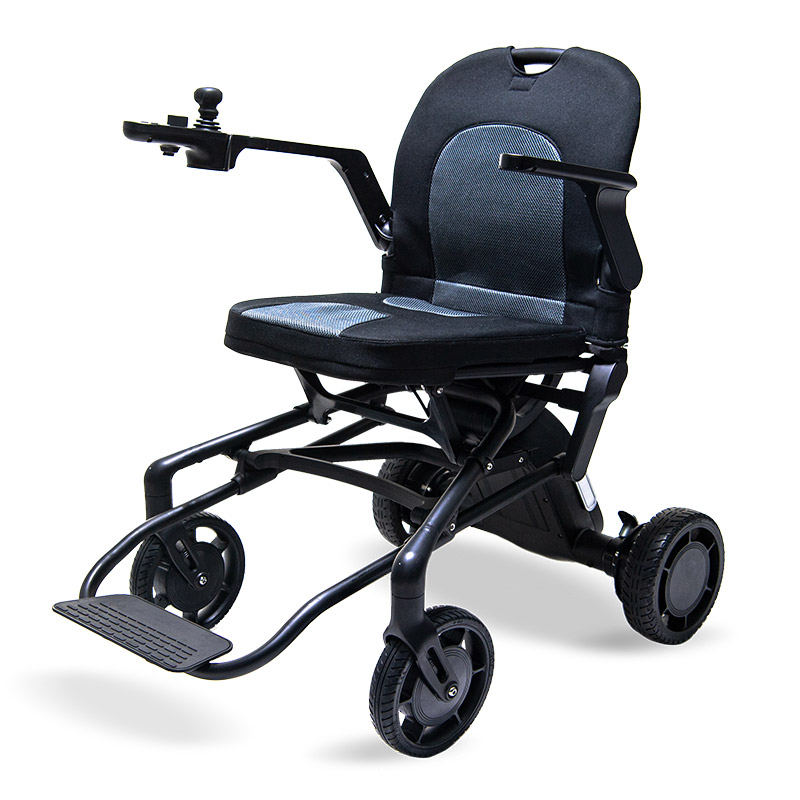

Model name: KLW-KZ1

product weight: 20kg (including 10Ah lithium battery)

product weight: 17kg (excluded battery)

product size: (LⅹWⅹH) 930ⅹ570ⅹ860mm

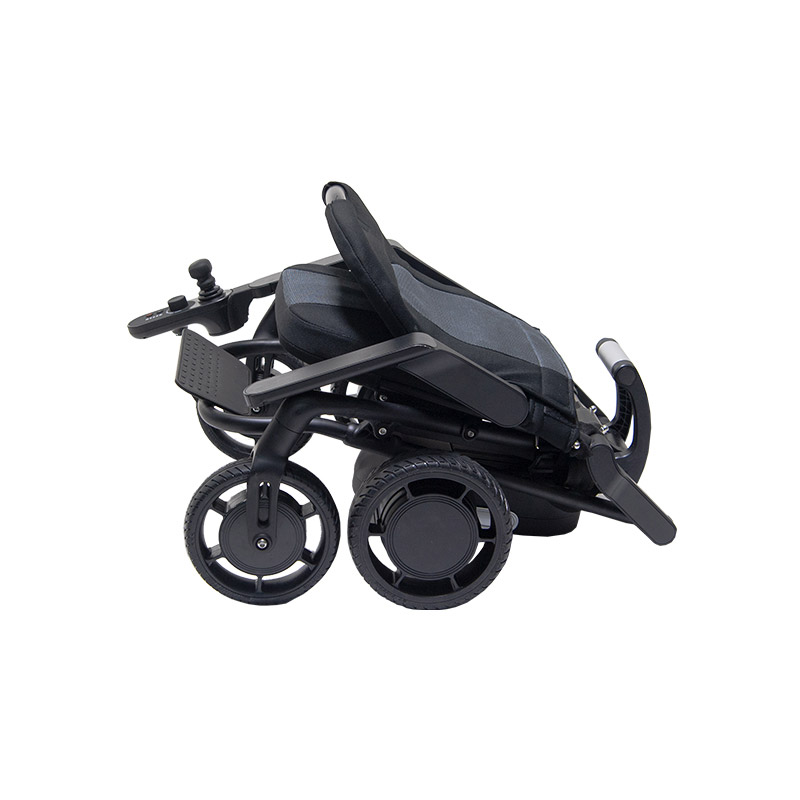

folding size: (LⅹWⅹH) 690ⅹ570ⅹ480mm

seat size: (DⅹWⅹH) 410ⅹ400ⅹ30mm(cushion)

seat height to floor: 510mm

rear wheel : 8 inch PU tyre

front wheel: 7.5 inch PU tyre

motor : 24V 200W brushless

battery capacity: 10Ah, ≥10km; 20Ah, ≥20km.

max load: 100kg

max speed: 6km/h

brake distance horizontal road: 1.5m

obstacle crossing height: 40mm

trench crossing width: 100mm

climbing performance: ≥12゜

slope performance : 9゜

mini turning radius: 900mm

brake: automatic electromagnetic braking system

wheelchair material: Mg alloy

Battery type: lithium polymer
